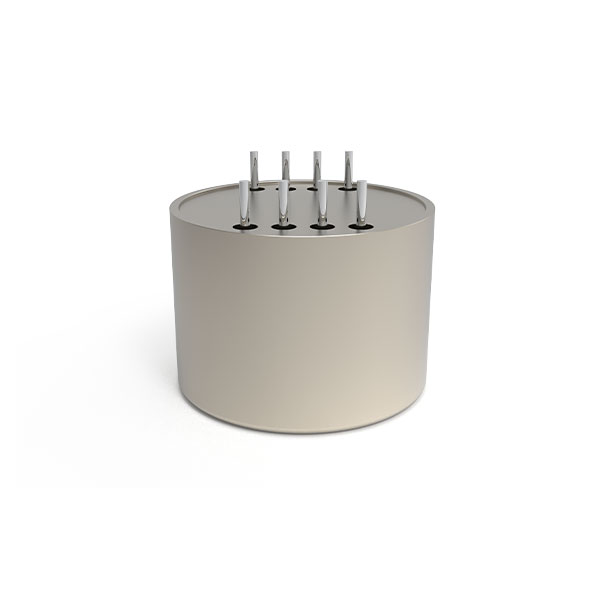

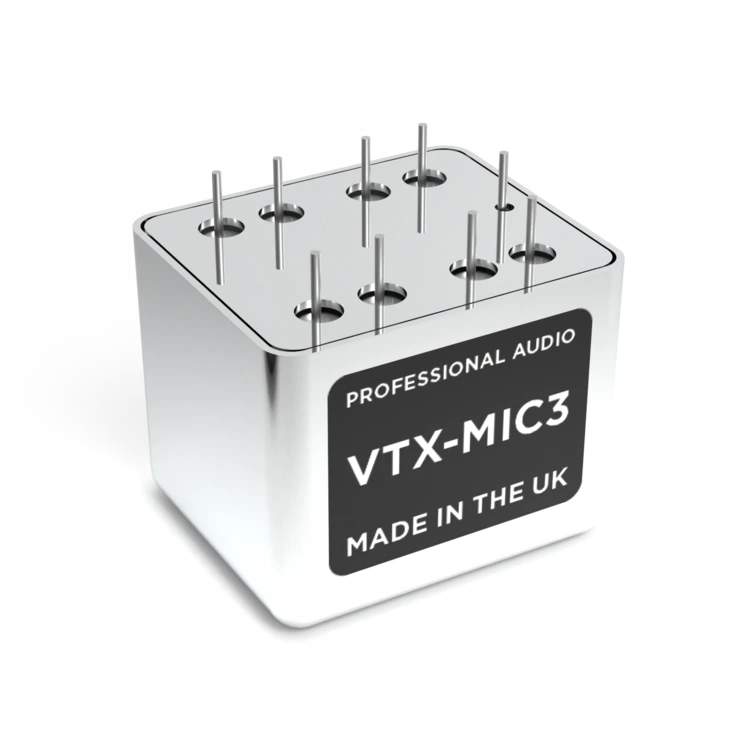

Microphone Input
Transformer designed to interface microphones with the input stage of audio equipment, such as mixing consoles, preamplifiers, or recording devices.

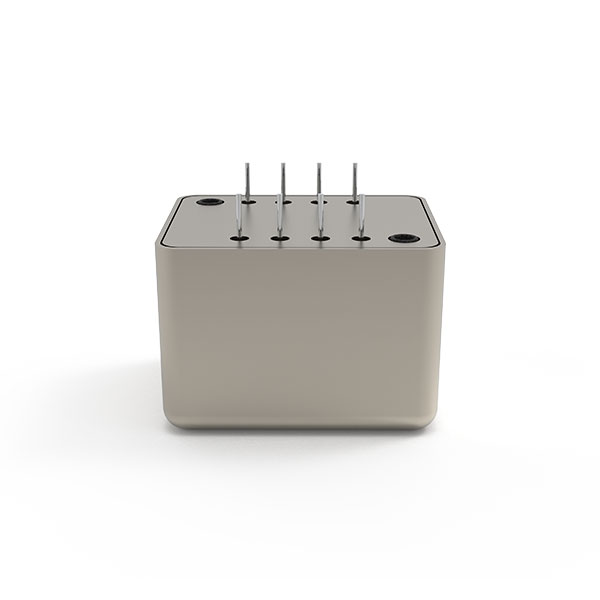

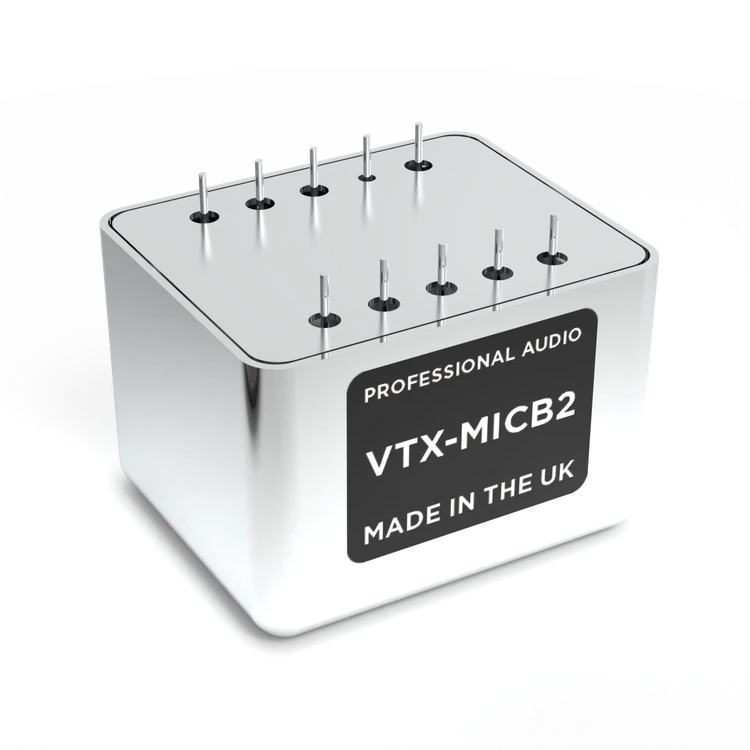

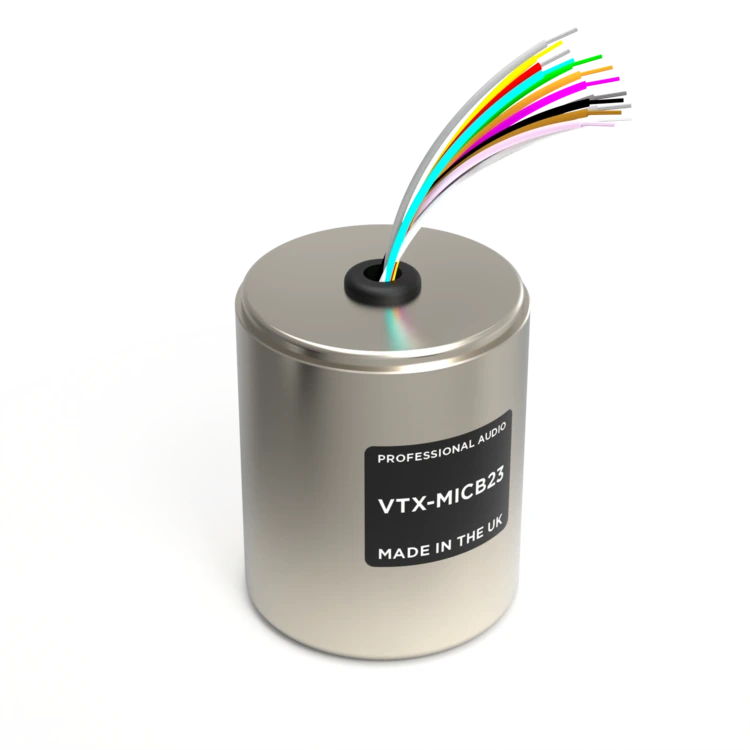

Microphone Bridging
Used in audio applications to connect a microphone to an audio input without heavily loading the microphone's output. It is designed to "bridge" the connection by presenting a high impedance to the microphone while driving the input stage of the connected device effectively.

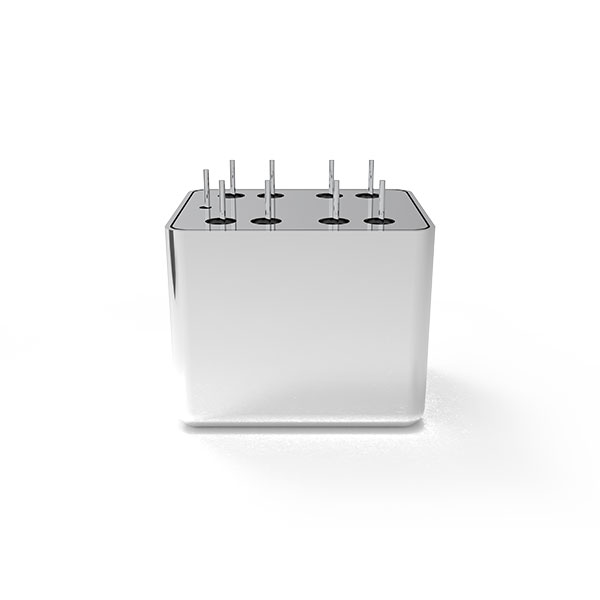

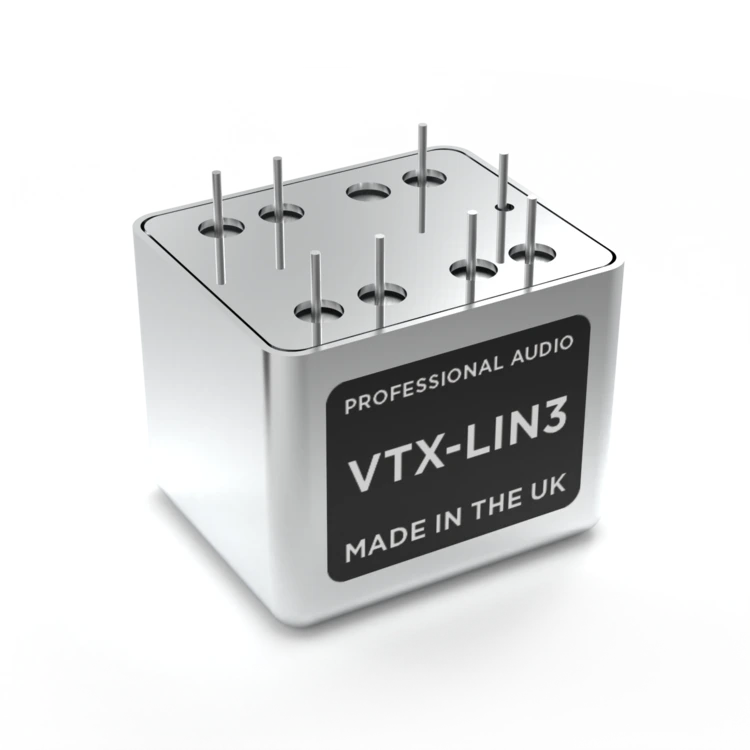

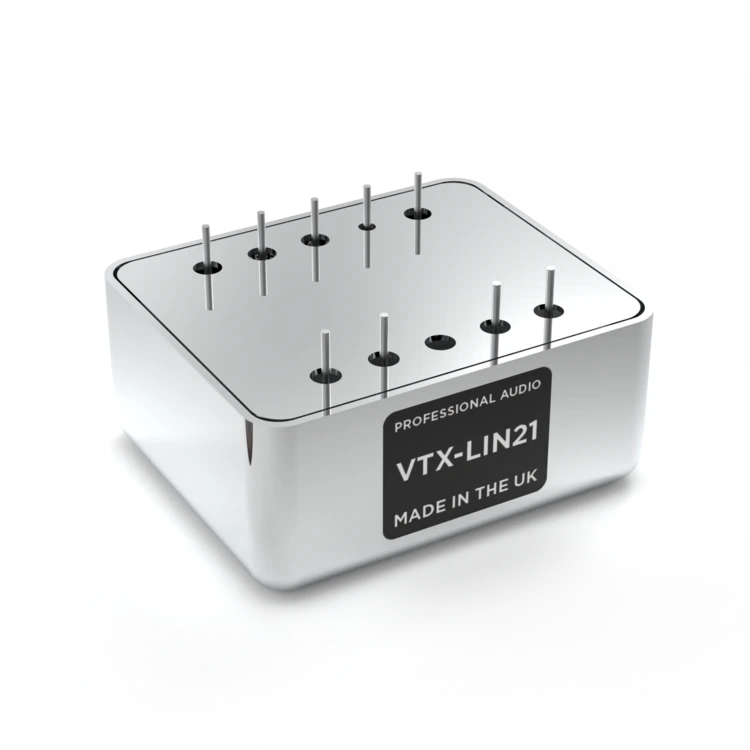

Line Input
Used in audio systems to interface line-level signals with the input stages of amplifiers, mixers, or other equipment. Its primary purpose is to optimise signal transfer, provide electrical isolation, and minimise noise and interference in audio systems.

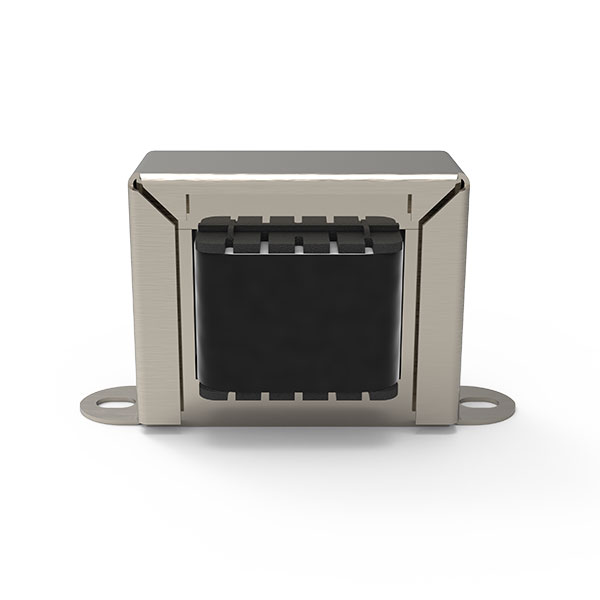

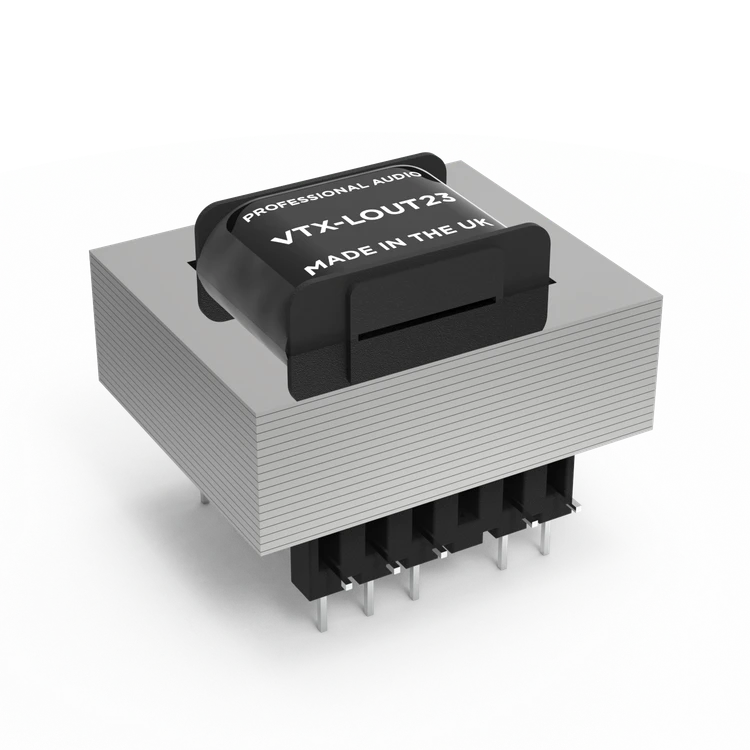

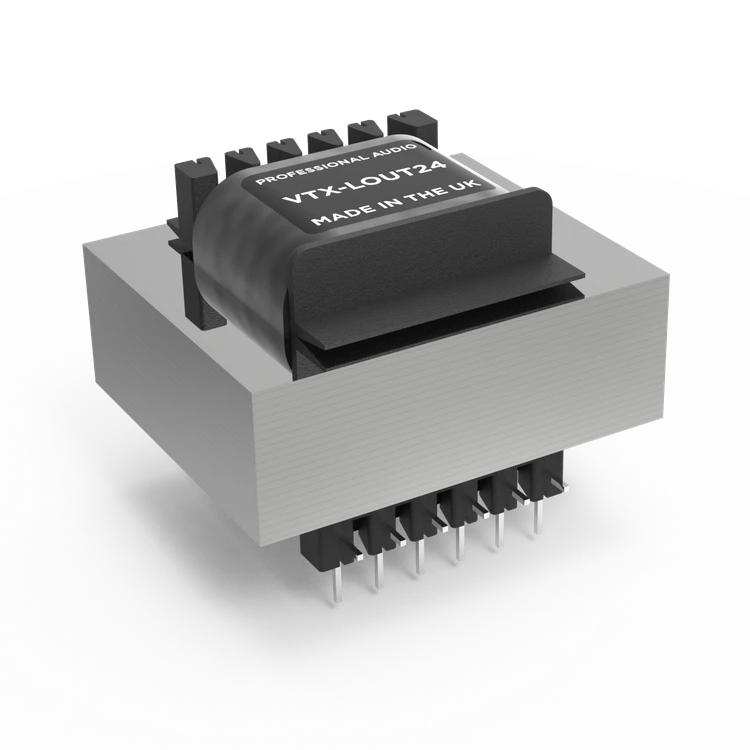

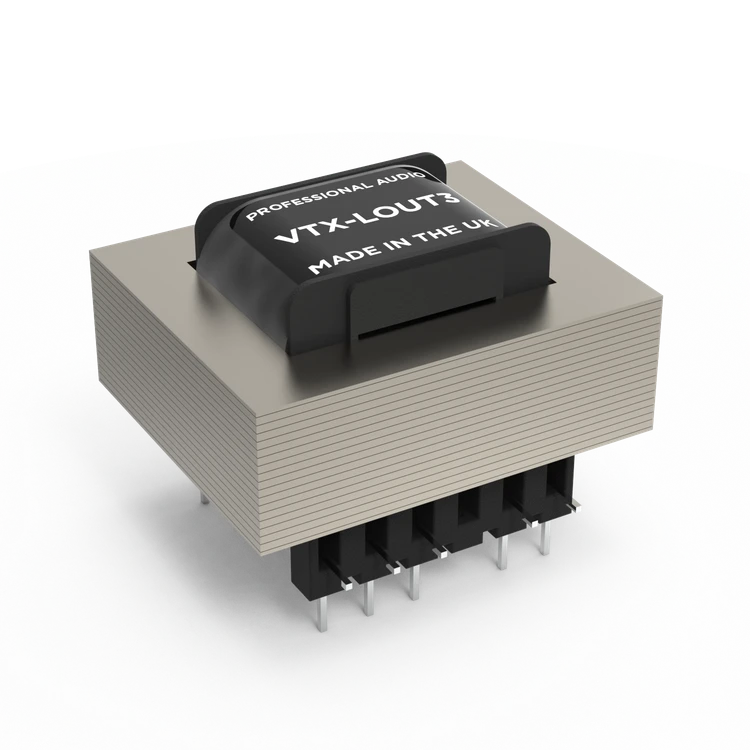

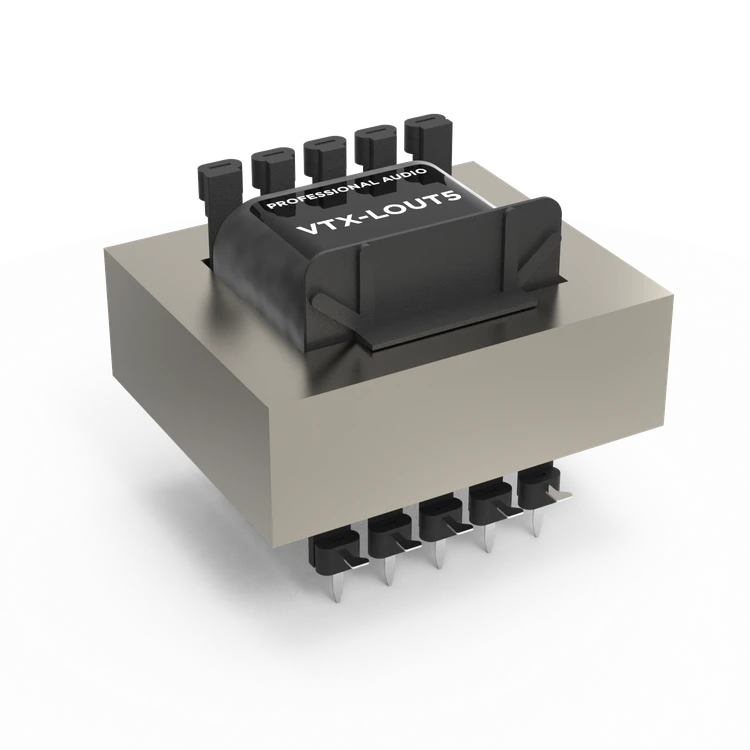

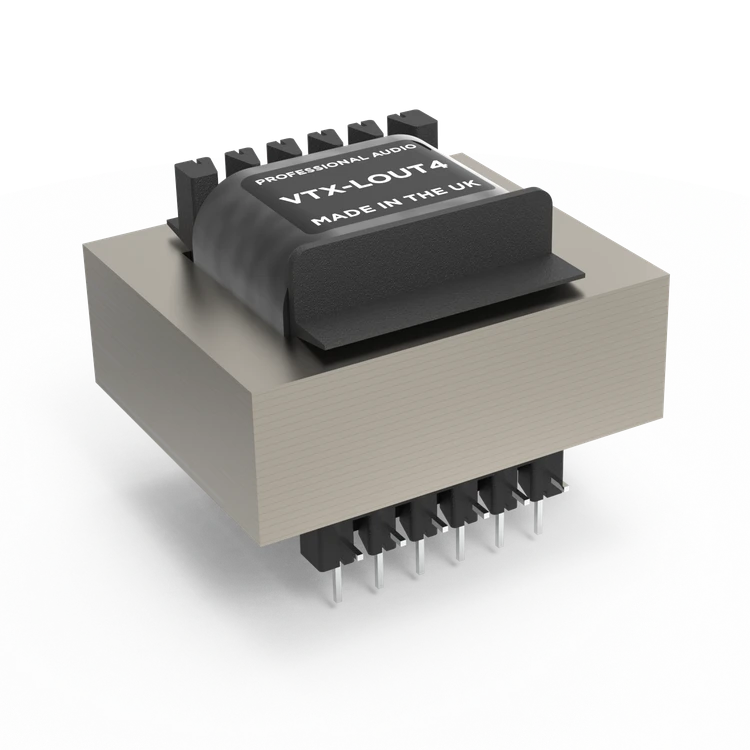

Line Output
Audio transformer used to couple the output stage of an amplifier, mixing console, or other line-level device to the input of another device, while maintaining signal integrity, providing electrical isolation, and optimizing impedance matching.

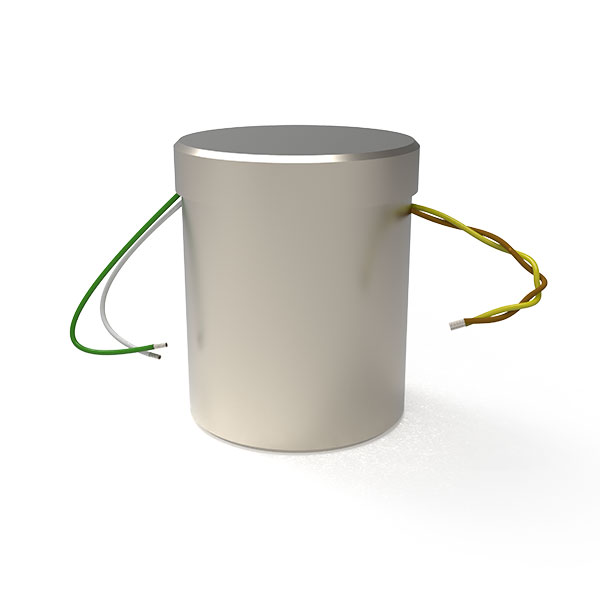

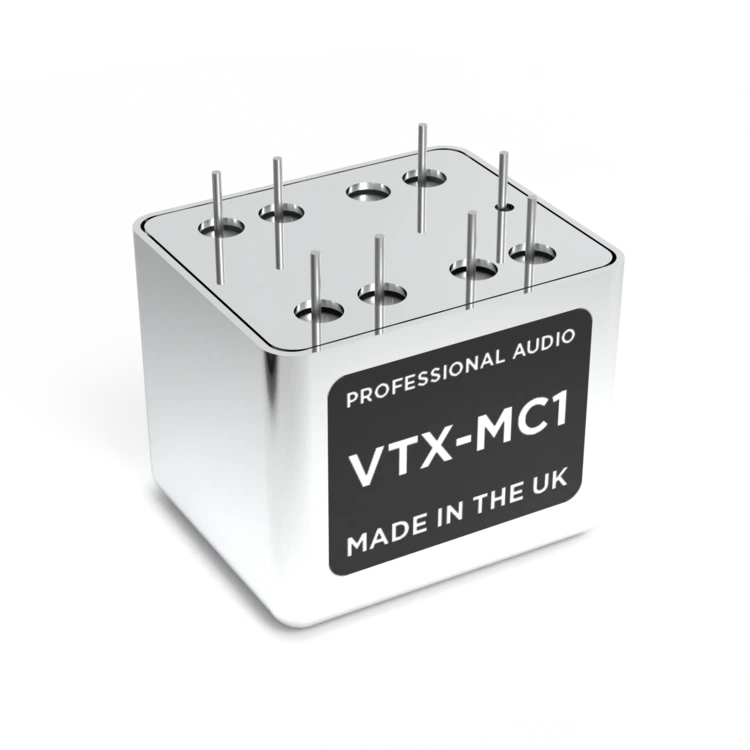

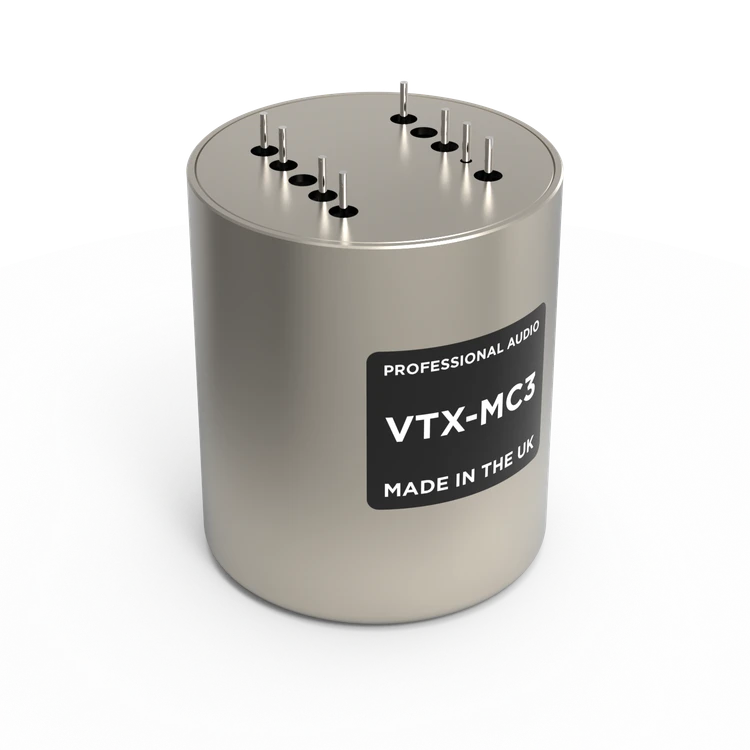

Moving Coil
Amplify the low-level signal from a moving coil (MC) phono cartridge used in turntables. MC cartridges are prized for their superior sound quality but produce very low output voltages, typically in the range of 0.2 mV to 0.5 mV, which is much lower than the output of a moving magnet (MM) cartridge. The transformer boosts this signal to a level suitable for standard phono preamplifiers.

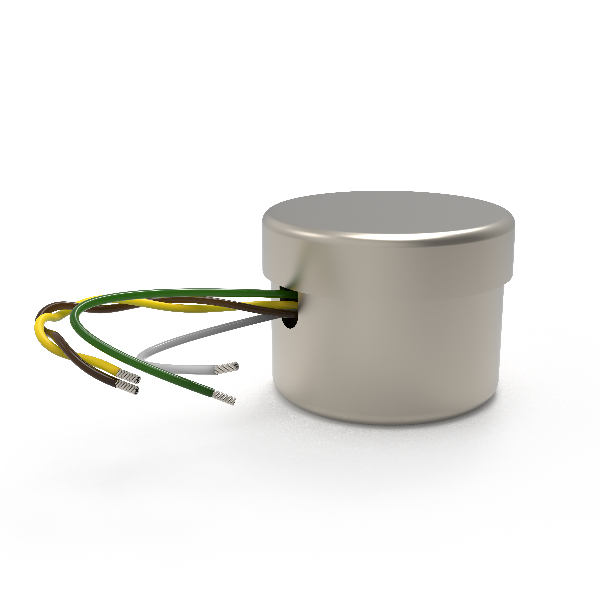

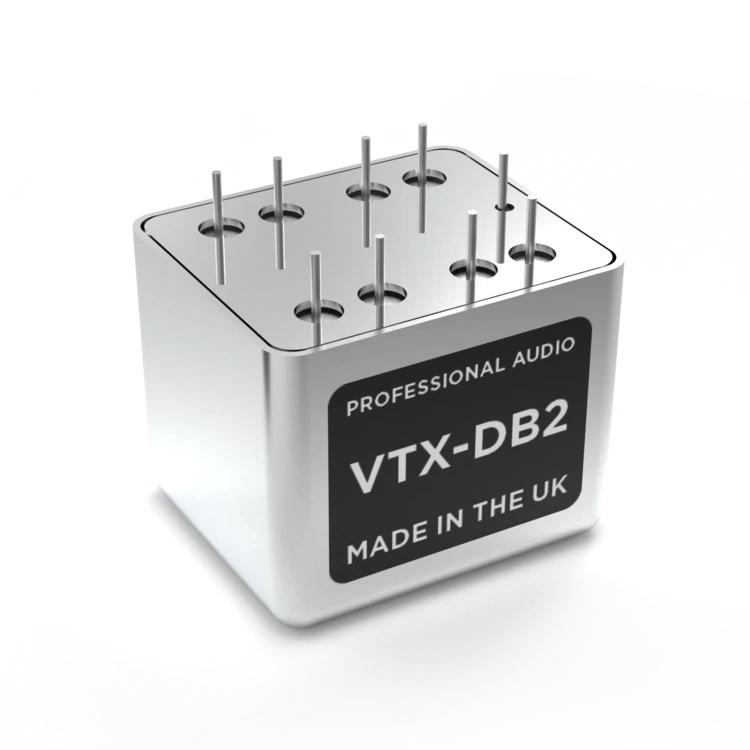

Direct Box
A direct box transformer is a key component in a direct injection (DI) box, a device used to connect high-impedance, unbalanced audio sources (like electric guitars, basses, or keyboards) to low-impedance, balanced inputs (like those on mixers or audio interfaces). The transformer inside the DI box performs several critical functions to ensure clean, noise-free audio signal transfer.

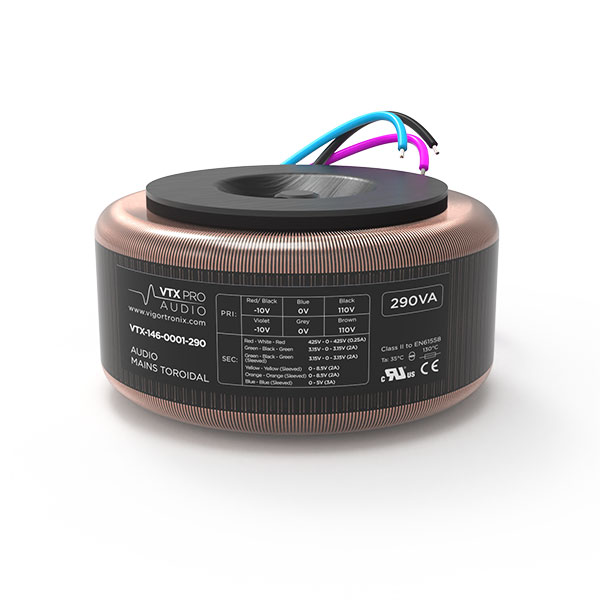

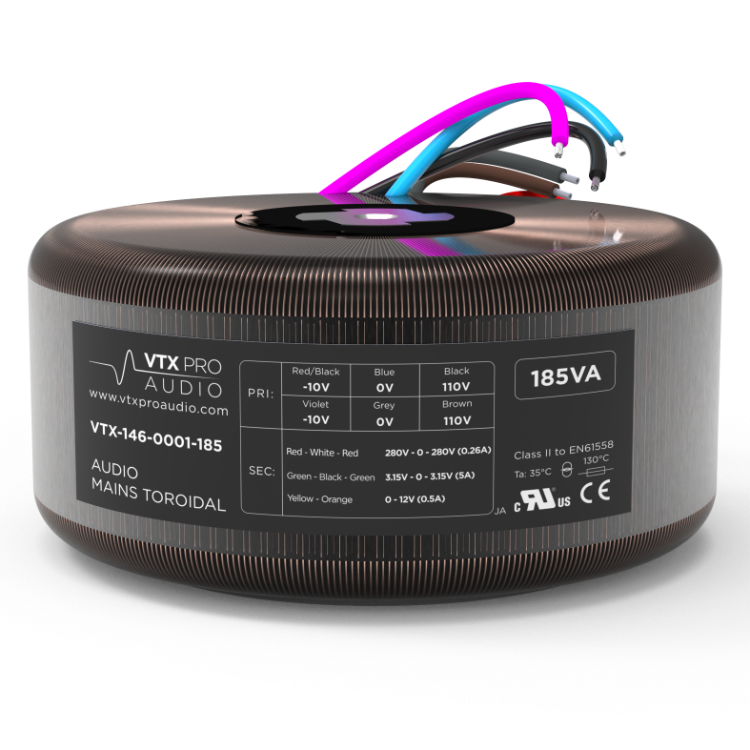

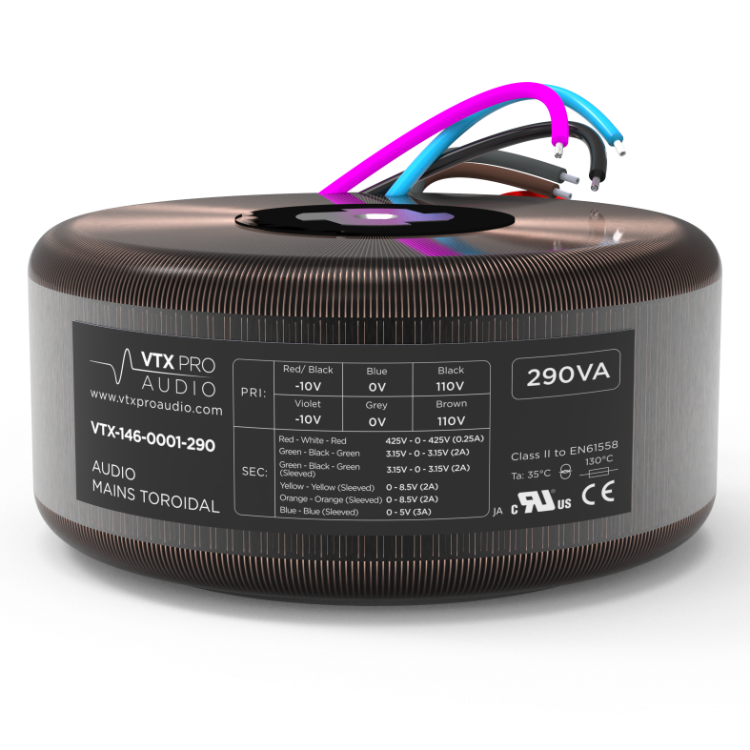

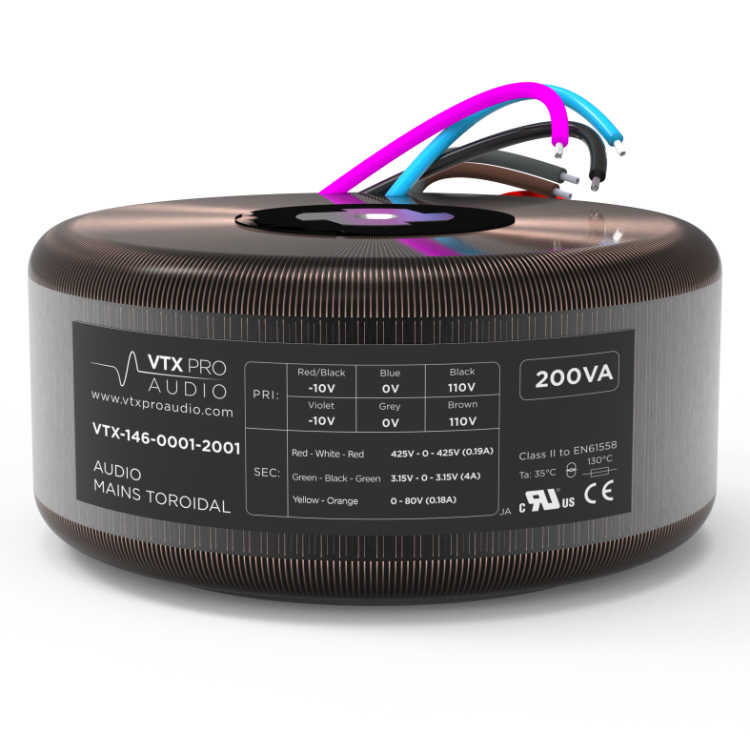

Mains Toroidal
Type of transformer that uses a doughnut-shaped core made of magnetic material. Converts mains power to lower voltages, in order to power your audio circuitry.

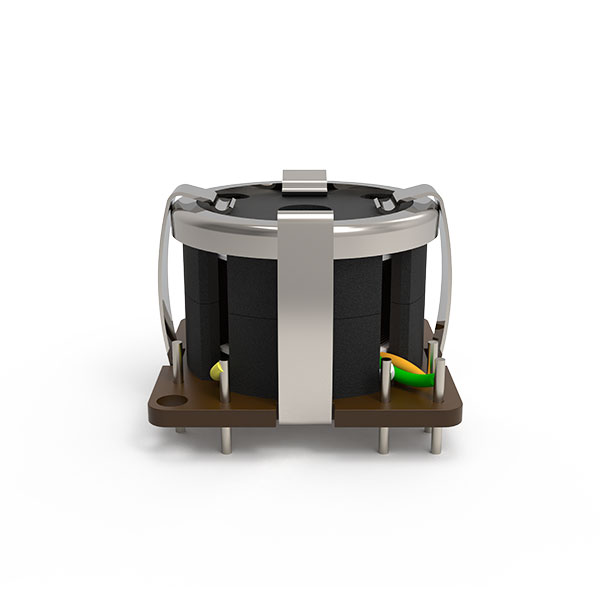

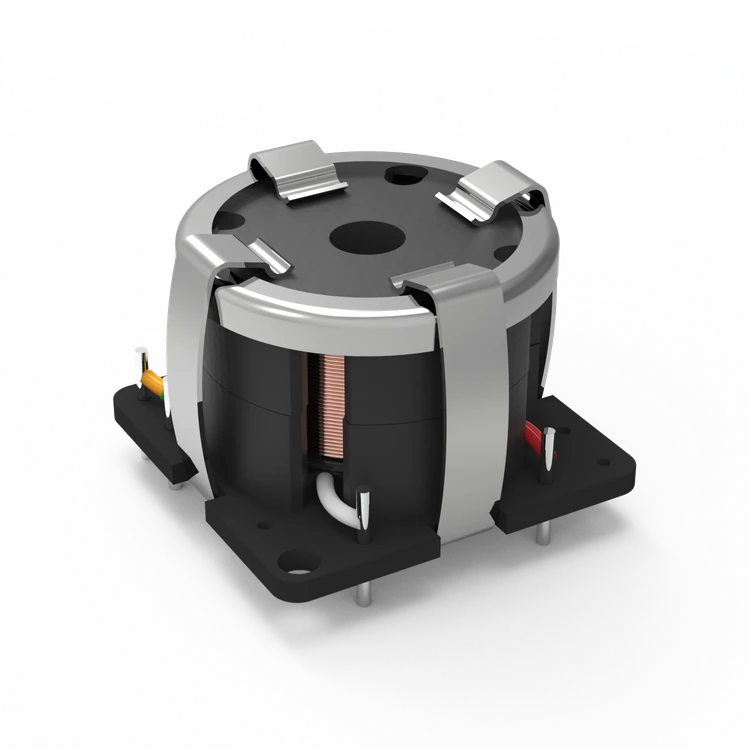

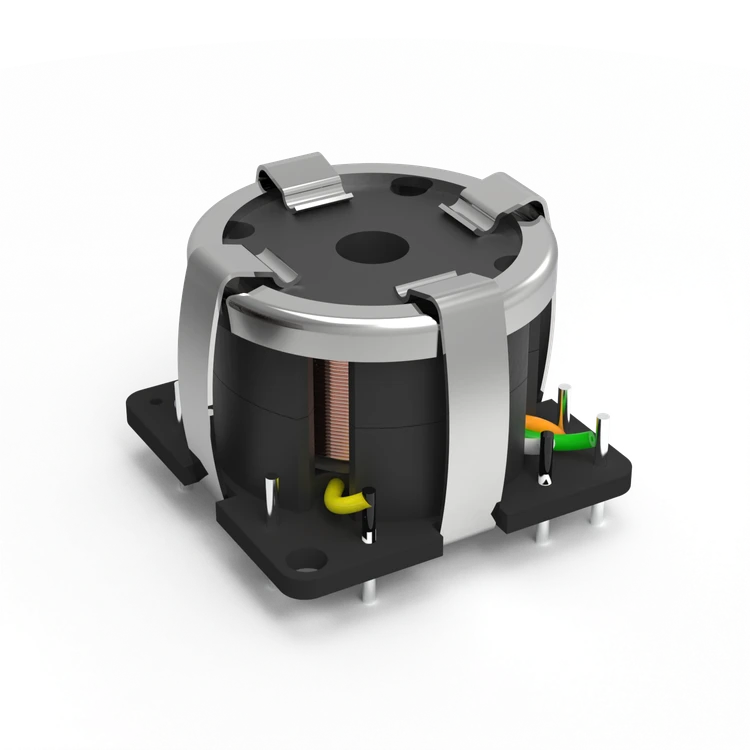

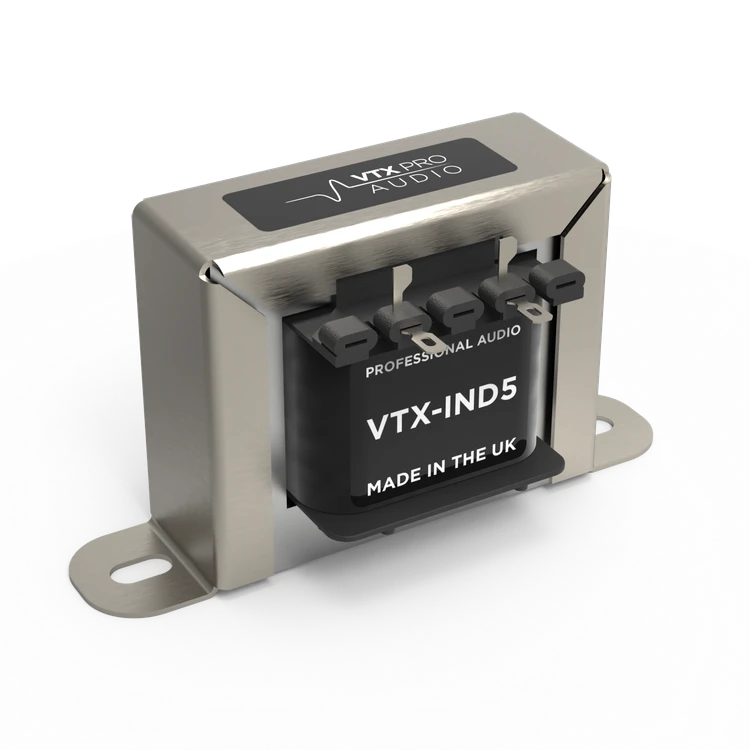

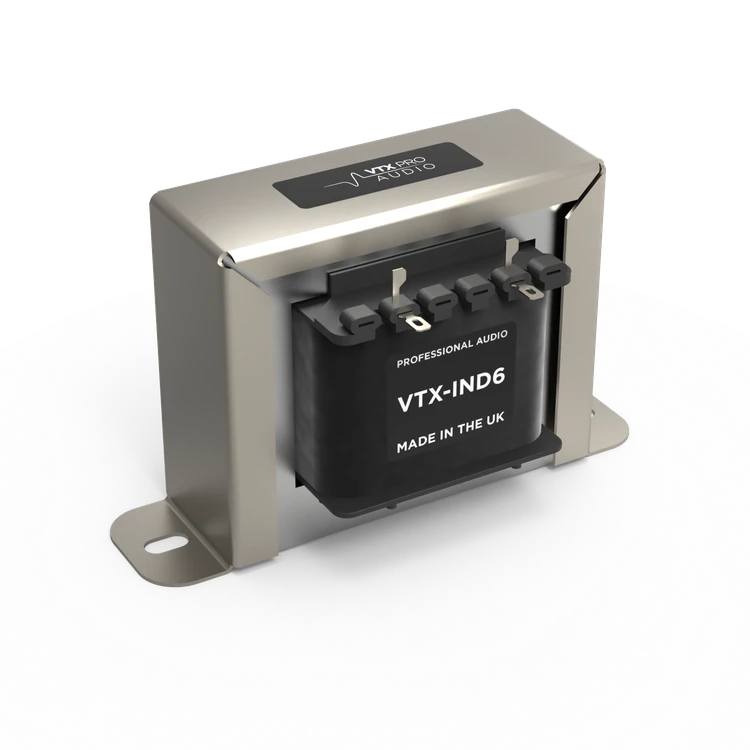

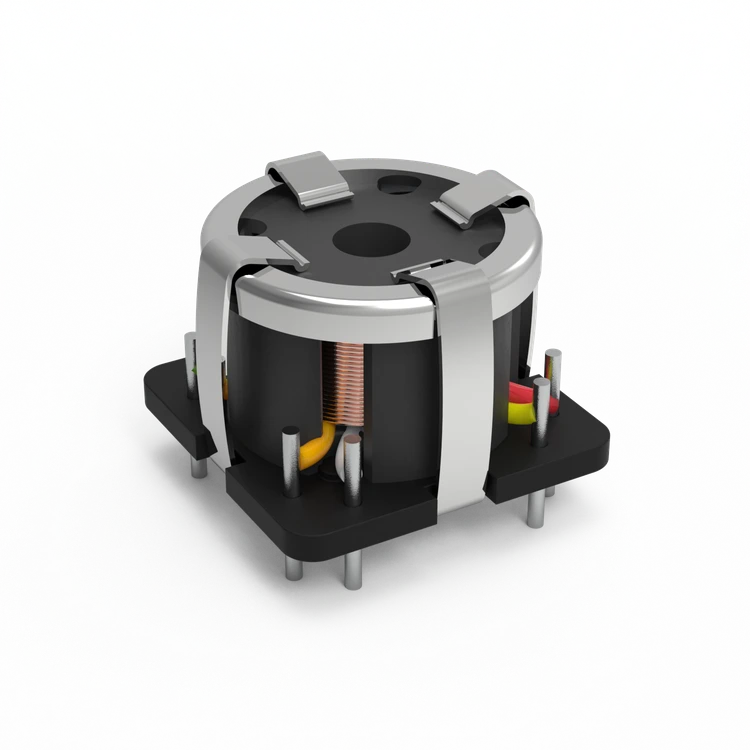

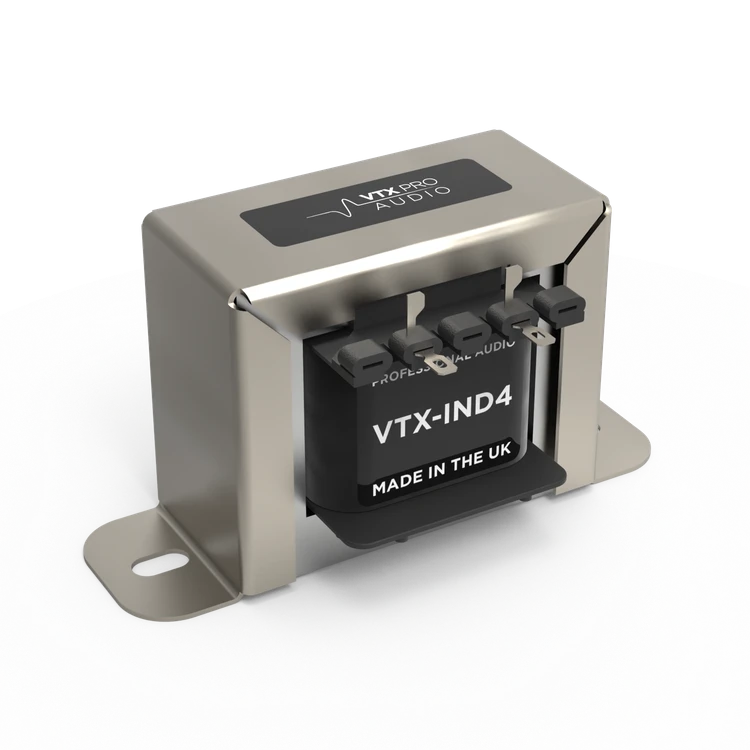

Inductors
Inductors with multiple connection points (taps) along their winding. These taps allow access to different levels of inductance without requiring multiple separate inductors. They are commonly used in audio circuits where variable inductance is needed for filtering, equalization, or other signal-shaping purposes.
Document No. | Note title | Download |
---|---|---|
AP001 | Line Line Drivers & Receivers | 📄 |
Document No. | Note title | Download |
---|---|---|
AP002 | Line Line Drivers & Receivers | 📄 |
AP002 | Line Line Drivers & Receivers | 📄 |
AP002 | Line Line Drivers & Receivers | 📄 |
AP002 | Line Line Drivers & Receivers | 📄 |
AP002 | Line Line Drivers & Receivers | 📄 |
AP002 | Line Line Drivers & Receivers | 📄 |
Document No. | Note title | Download |
---|---|---|
AP003 | Line Line Drivers & Receivers | 📄 |
Document No. | Note title | Download |
---|---|---|
AP004 | Line Line Drivers & Receivers | 📄 |
Designed, manufactured, and 100% tested in Oxfordshire, UK.
Over 40 years experience in the pro audio market, delivering quality to some of the biggest industry brands.
ISO 9001 company with rigorous quality and testing procedures.
Your studio and consumer applications designed in our in-house lab.
Introducing VTX Pro, a new name in high-end audio transformers, crafted to meet the demands of professionals who refuse to compromise on sound quality. Designed and manufactured in the UK, our audio transformers are built on a foundation of 40 years technical expertise, innovation, and a relentless commitment to sound excellence.
At VTX Pro Audio, we take pride in our British engineering. Everything we create is designed, manufactured, and tested right here in our Oxfordshire facility. This hands-on approach means we can guarantee the quality and reliability of every product that leaves our doors.
With over 40 years in the pro audio industry, we’ve built a deep understanding of what works—and what doesn’t. We’ve collaborated with some of the biggest names in the business, and that experience shapes everything we do today.
We’re ISO 9001 certified, and we don’t take that lightly. Every part we produce goes through strict quality control and thorough testing. It’s how we ensure consistent performance and long-lasting reliability across our entire range.
We love a challenge—especially when it comes from our customers. If you have a unique requirement or an idea that pushes the boundaries of conventional design, we’re all ears. Our in-house lab is fully equipped to develop tailored solutions that meet even the most demanding specs. Bring us your toughest brief—we’ll turn it into something exceptional.
